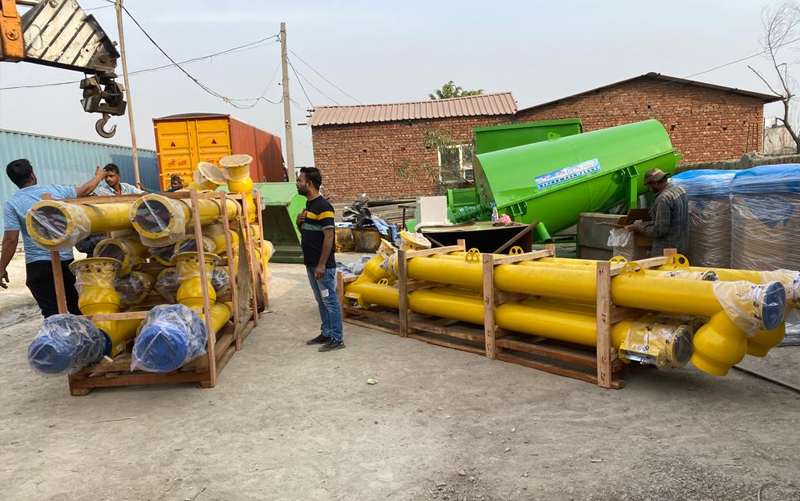

As a specialised version of the modular TU Screw Conveyor System, ES Screw Conveyors and Feeders are manufactured from carbon steel with suitable surface finishing and powder coating. They are made up from a tubular trough equipped with at least one inlet and outlet spout, a welded flange at each tube end, helicoid screw flighting welded on a centre pipe with coupling bush at each end, two end bearing assemblies complete with self-adjusting shaft seal (one of the bearing assemblies is integrated into the drive unit), and a number of intermediate hanger bearings depending on the overall length. ES Screw Conveyors and Feeders are equipped with a gear motor that suits the application.

ES Screw Conveyors and Feeders are used for conveying or feeding cement and materials similar to cement mainly in concrete batching plants but also in other building materials processing plants.

Features:

• Powder-coated
• Outside tube complete with welded end flanges, one inlet, one outlet, inspection hatch beneath the first inlet and beneath each intermediate hanger bearing
• Tubular housing in standardised flanged sections with one section made to measure
• Helicoid screw flighting welded on centre pipe
• End bearing assemblies complete with self-adjusting shaft seal
• Splined shaft couplings
• Lifting eyelets on each tube section
• Standard flange-mounted electric motor
• Maintenance-free aluminium-cast intermediate hanger bearings with self-lubricating slide bushes
• Compact design and overall dimensions
• Reduced number of components and spare parts

Benefits:

• Durable
• Maintenance-free
• Quick installation due to universal inlet and outlet spouts
• Optimum price-performance ratio
